0.4-0.8Mpa Lithium Battery Making Machine AC 220V Automatic Cell Sorting Machine

Product characteristics:

Automatic online interface: It can be customized to connect the outlet of the automatic insulation paper pasting
machine to the machine hopper to realize automatic connection of the battery core and save labor costs.

Test effect: Repeated test, excellent effect.

Automatic collection of production quantity, showing current production efficiency.

Test data can be stored using a USB stick and transferred to a computer.

BT-1810 cell sorting machine
Power	AC220V 50/60HZ 1.6KW
Air pressure	0.4-0.8Mpa,No water, no impurities
battery cell range	14430/14500/18500/18650/21700/26650/26700/32650/32700
Standard IR test	HK3560
Optional tester	HIOKI3561/HIOKI2562/HK3561
Efficiency	About 5000pcs/h
Control device	PLC Touch screen control
Run power	Stepper motor
Voltage setting	0.00000V-6.0000V
Internal resistance	000.00mΩ-999.99mΩ
Channel	8-16 OK,1NG
Test data	U disk storage,can be copied to the computer
Communication interface	RS485
Test method	4-wire system
Test pin	DZ100-214A30G
Dimensions	L1100*W930*H1390MM/ L2260*W930*H1390MM
Weight	About 110/160KG

Product Tags:

Lithium battery making machine 0.4-0.8Mpa



Automatic cell sorting machine AC 220V



Battery production line with sorting function

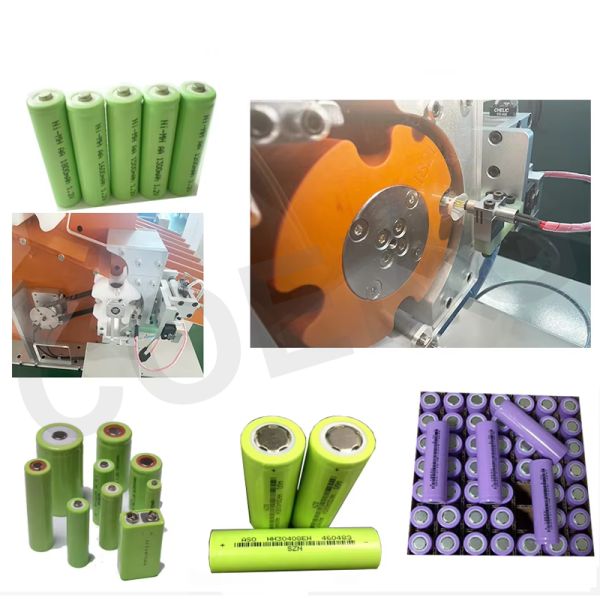

0.4-0.8Mpa Lithium Battery Making Machine AC 220V Automatic Cell Sorting Machine Images
